Vapour control membranes

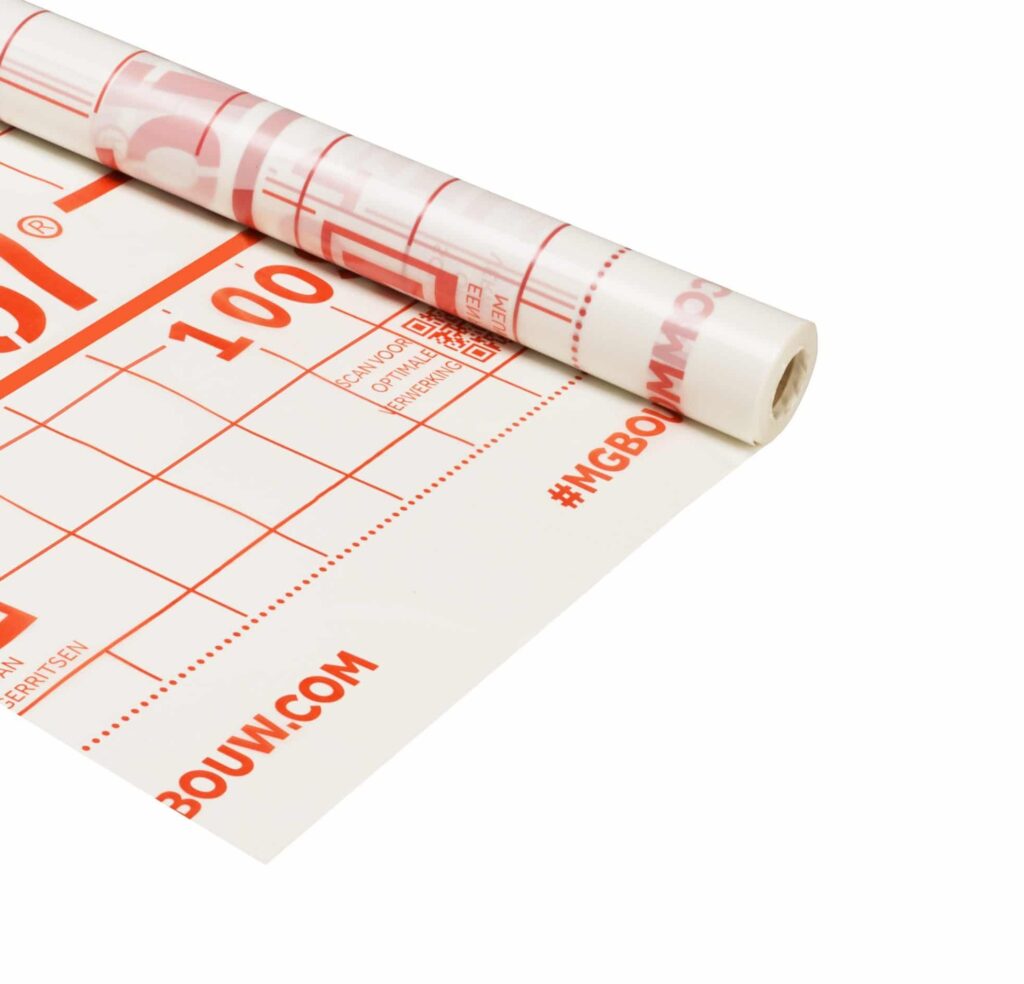

Miofol 100S

Miofol® 100S is a 3-layer moisture-repellent COEX membrane that possesses exceptional protective properties. Miofol® 100S prevents moisture in the concerned area from infiltrating into the construction or insulation.

1,50 x 50 m Article no. 6110015010

Applications

Miofol® 100S is used as a vapour control membrane in wall and roof constructions. The membrane is used on the warm side (often the inner side) of the construction. Thanks to its constant moisture-inhibiting properties, Miofol® 100S is suitable in constructions in climate class 2 and 3, such as homes, offices, schools, etc. Miofol® 100S consists of three layers, which means it can resist high mechanical loads, also when prefabricated elements are being transported.

Processing

Miofol® 100S should be applied on the warm side (often the inner side) of roof and wall constructions. Use stainless steel staples or VAST-R® Double-sided tape to attach the membrane to the underlying construction. It must be possible to read the logo from the inside. Keep an extra 100 mm at all horizontal and vertical overlaps. To ensure effective moisture inhibition, we recommend using VAST-R® Membrane tape basic to tape over staples, joints and overlaps. Openings, joints and recesses can be made airtight using our VAST-R® range and our Tyvek® FlexWrap tape.

Benefits

Watertight

Consists of 3 layers

Exceptional protective properties

Airtight

Placed faster than folded membranes

Specifications

Weight 100 gr /m²

Fire class E

Water tightness W1

Water vapour resistance Sd 100 m

Tensile strength machine direction 180N / 50 mm

Tensile strength cross direction 160N / 50 mm

Elongation machine direction 700%

Elongation cross direction 800%

Tear resistance machine direction 90N

Tear resistance cross direction 80N

Temprature resistance -20°C/80°C
